Summary

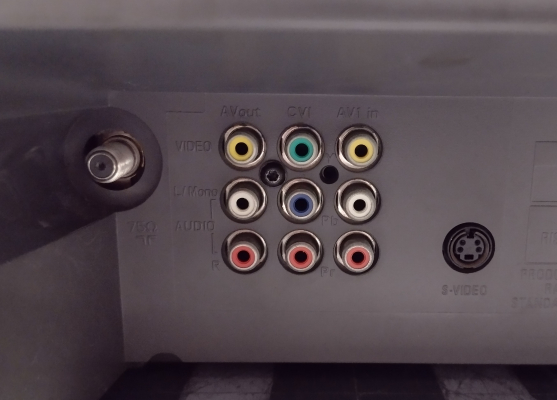

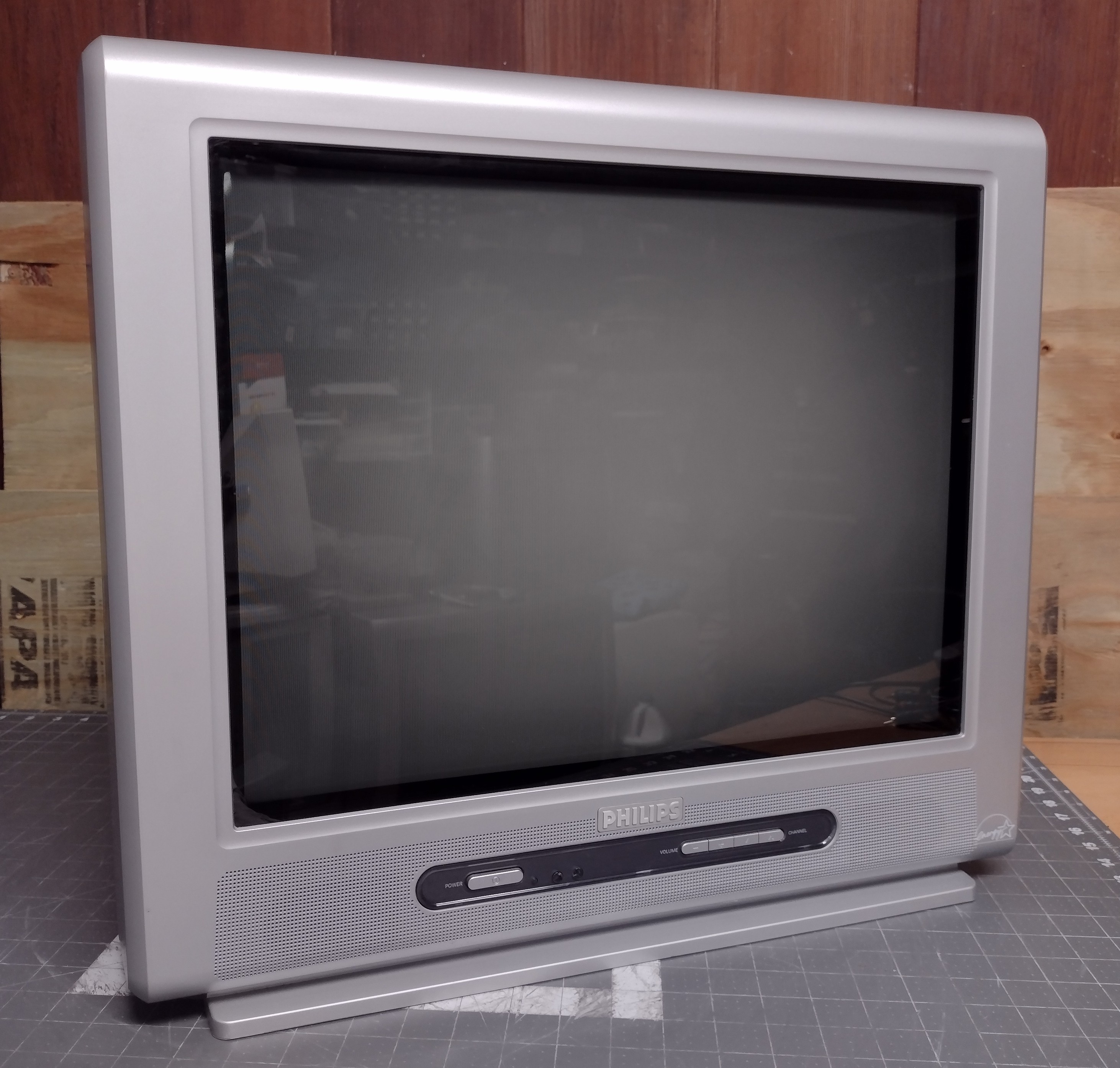

20" Flat screen TV from Philips. Has a full set of inputs, including component and S-Video. Picture quality is very clean, especially with component video, and it has excellent geometry and linearity.

Literature

• User Manual
• Service Manual
• Specification Sheet

Notes

This model features an hour counter that can be seen at the top left of the service menu. It can be accessed by pressing the sequence "0 6 2 5 9 6 Menu" on the remote.

Like many Philips TVs, this model is capable of syncing to 50hz. Pal video will still display in black and white through the composite and S-Video inputs, but will be in color if you use component.

Late model Philips TVs have a circuit that automatically compensates for variations in G2 voltage. When adjusting the screen pot on these TVs, it is best to disable "AKB" in the service menu. This feature can cause streaking on the image if G2 and brightness are not adjusted properly.

Several Philips TVs, including this model, are prone to oxidized microswitches on the front panel. This causes the buttons to perform the wrong function when pressed. This can be fixed by replacing the switches, or avoided by using the remote instead.
