Summary

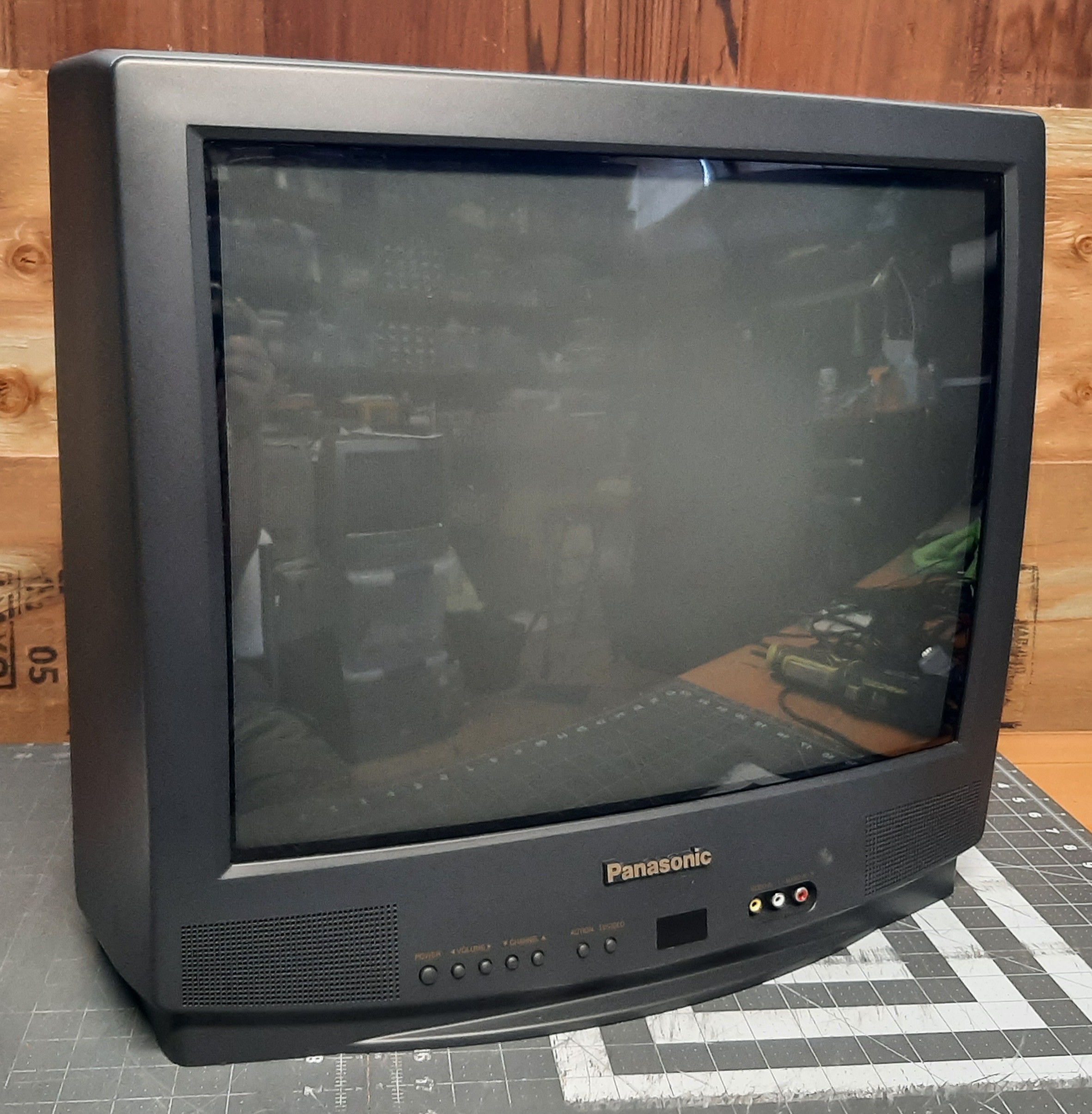

Basic 20" curved screen TV from Panasonic, with RF and composite inputs. Build quality is good for a TV of its size.

Literature

User Manual

Notes

Panasonic produced numerous variants of these 20" TVs during the late '90s and early 2000s. They are very similar, with slight variations in the model number. Later models have a 1-chip chassis design rather then separate jungle/micon ICs.

As with other Panasonic TVs and monitors from this era, the jungle chip used in this TV does accept analog RGB. However, the signal must be DC coupled and may have a voltage offset. It cannot be connected directly without amplification and/or level shift. Mod instructions for the CT-S1390Y should also apply to this TV.
