Summary
15" SVGA monitor from NEC. As with most monitors of its size from the early to mid 1990s, it is intended for use at 800x600 and has a 50 kHz max horizontal scan rate.
Media & Promo Materials
Notes
This monitor can also be identified as JC-1532VMA-2.
Unlike most PC monitors, this model uses a glossy tube with no anti-glare coating.

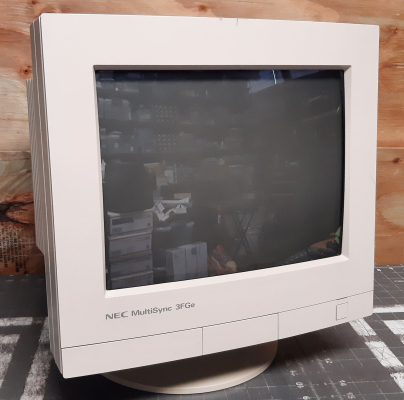

Gallery
| Specifications | |
|---|---|
| Brand: | NEC |
| Manufacturer: | NEC |
| Model: | Multisync 3FGe |
| Series: | Multisync |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 50 kHz, 28 kHz |
| Vertical Scan Range: | 48 Hz, 94 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Vertical Output IC: | LA7837 |
| Flyback: | 4710675 |
| Tube: | NEC , M36KME20X , M36KME20XX35 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | NDY-13522SC-4 |
| Yoke Horz. Inductance: | 0.2042 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 10.815 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.671 ohm |
| Yoke Vert. Resistance: | 10.3 ohm |
| Speakers: | None |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Country of Manufacture: | USA |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Measurements, Needs Pictures |
