Hitachi CM751U
Matt Ross
February 28, 2023, 11:22 pm
February 28, 2023, 11:22 pm
Summary
19" computer monitor. Released in 1997 as a premium model. Features a 0.26 mm tube, which was marketed by under its horizontal measurement of 0.22 mm as extremely fine pitch.
Literature
Notes

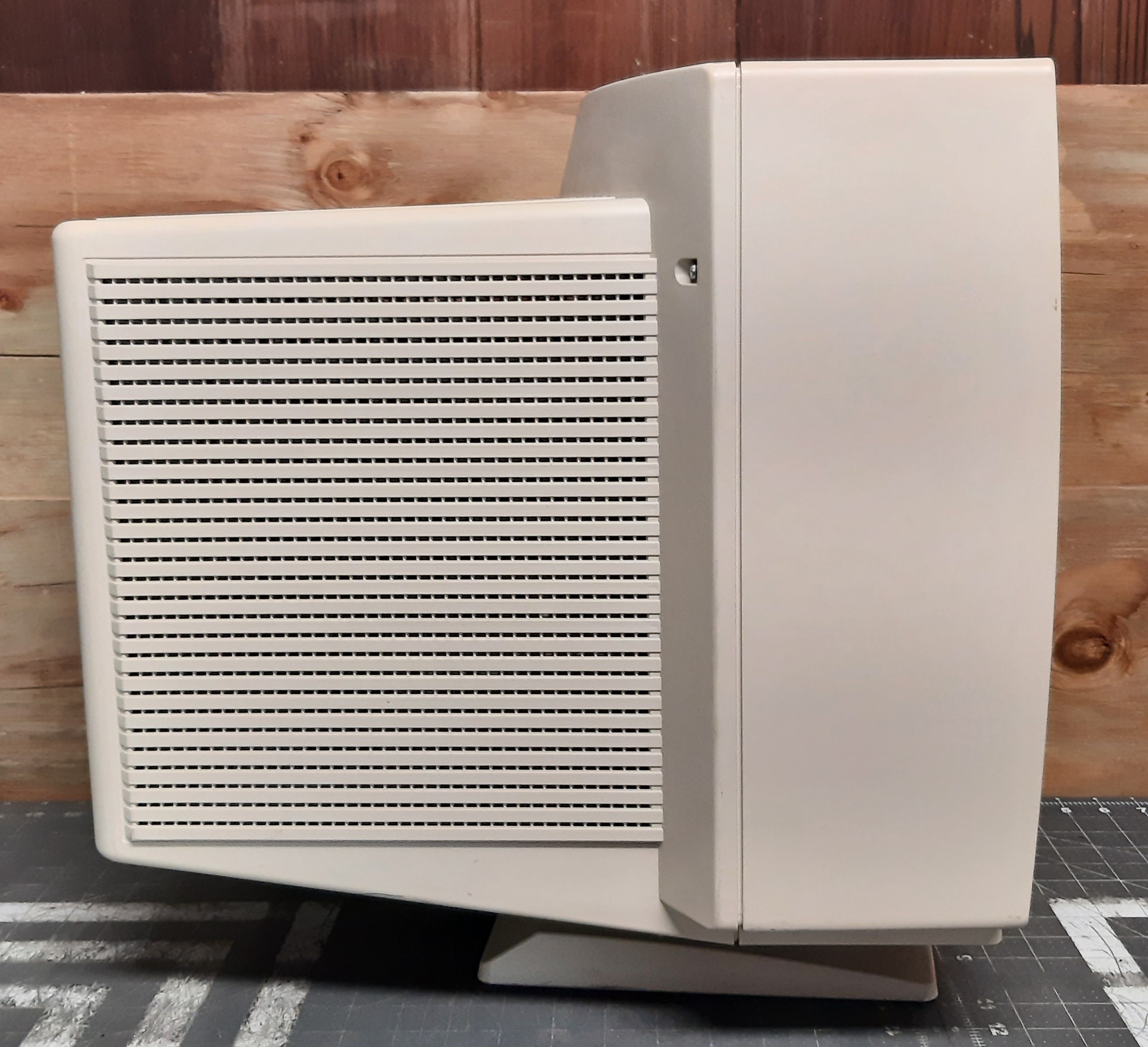

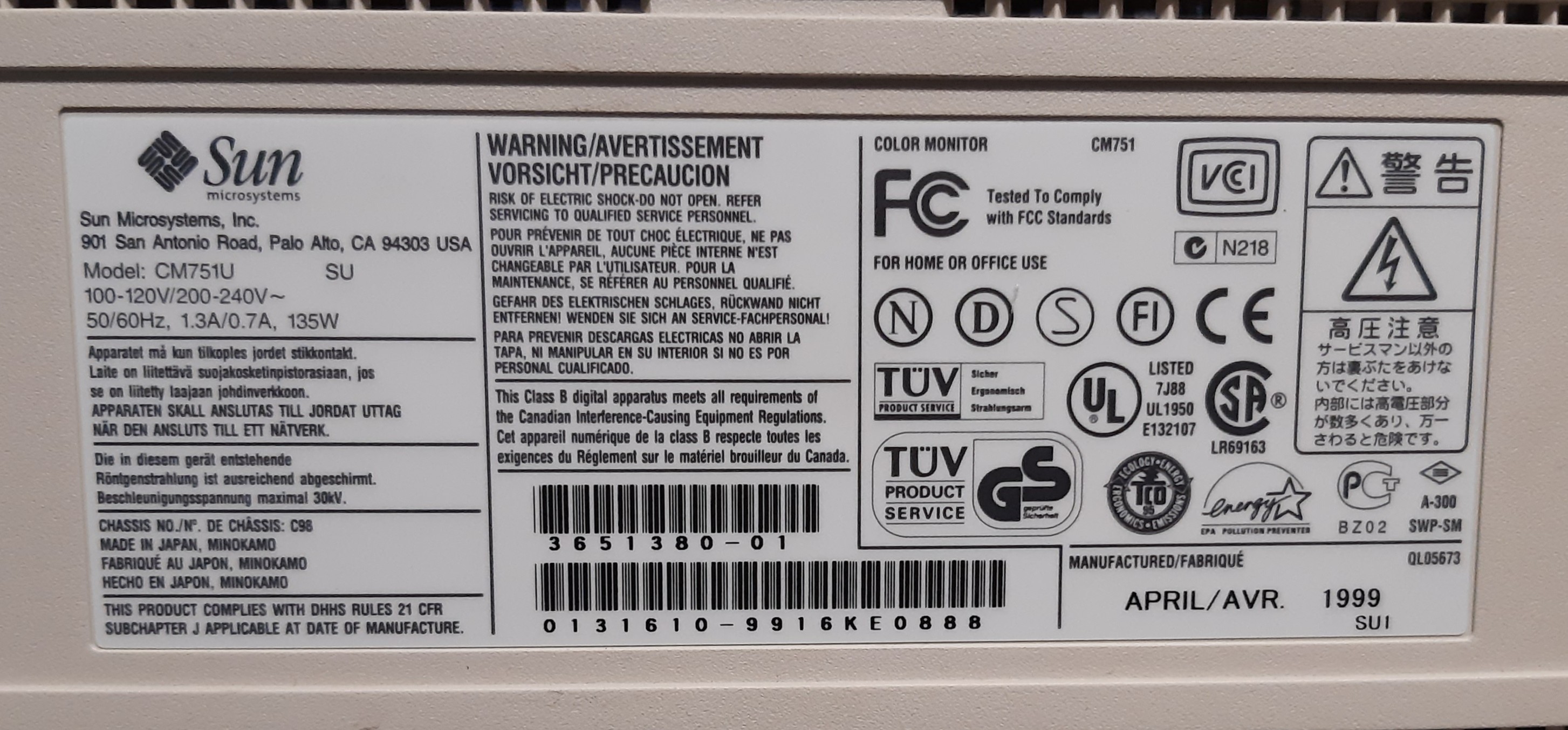

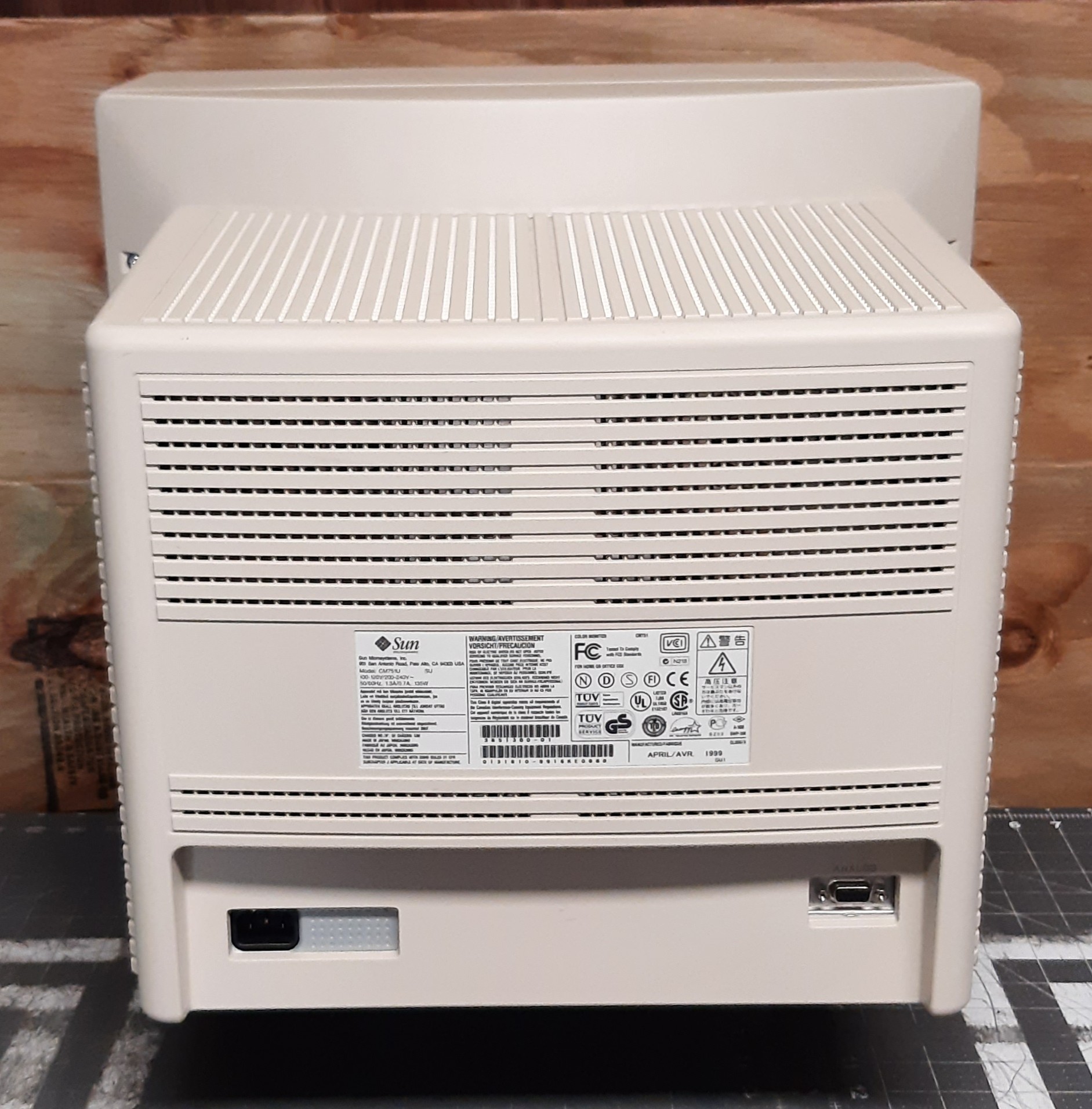

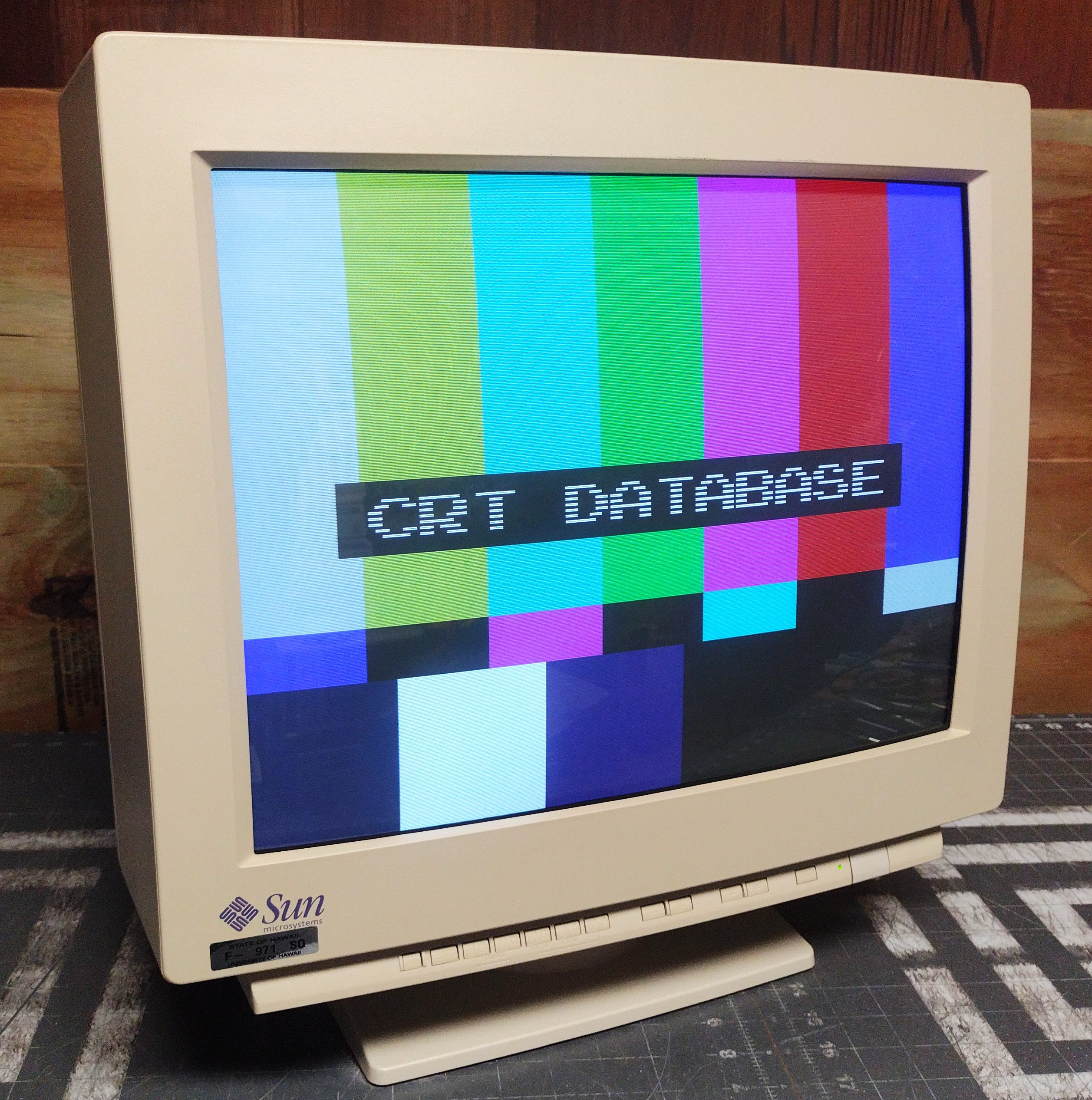

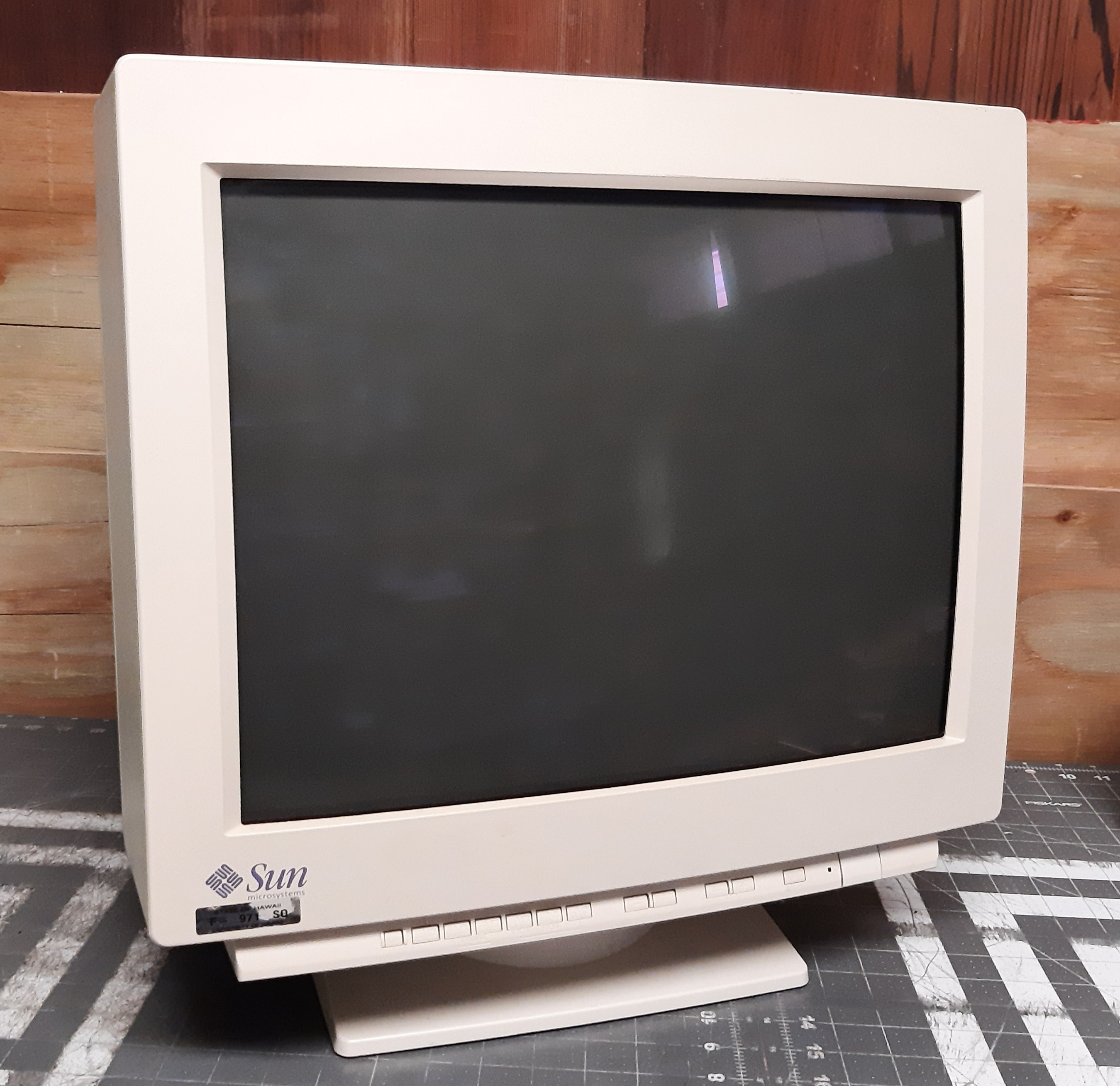

This monitor was also sold by Sun Microsystems, using the same model number. The photos on this page are of the Sun rebrand.
Hitachi produced two other 19" monitors in the series, the CM752U and CM753U. They feature 101 kHz and 107 kHz horizontal scan rates, respectively.

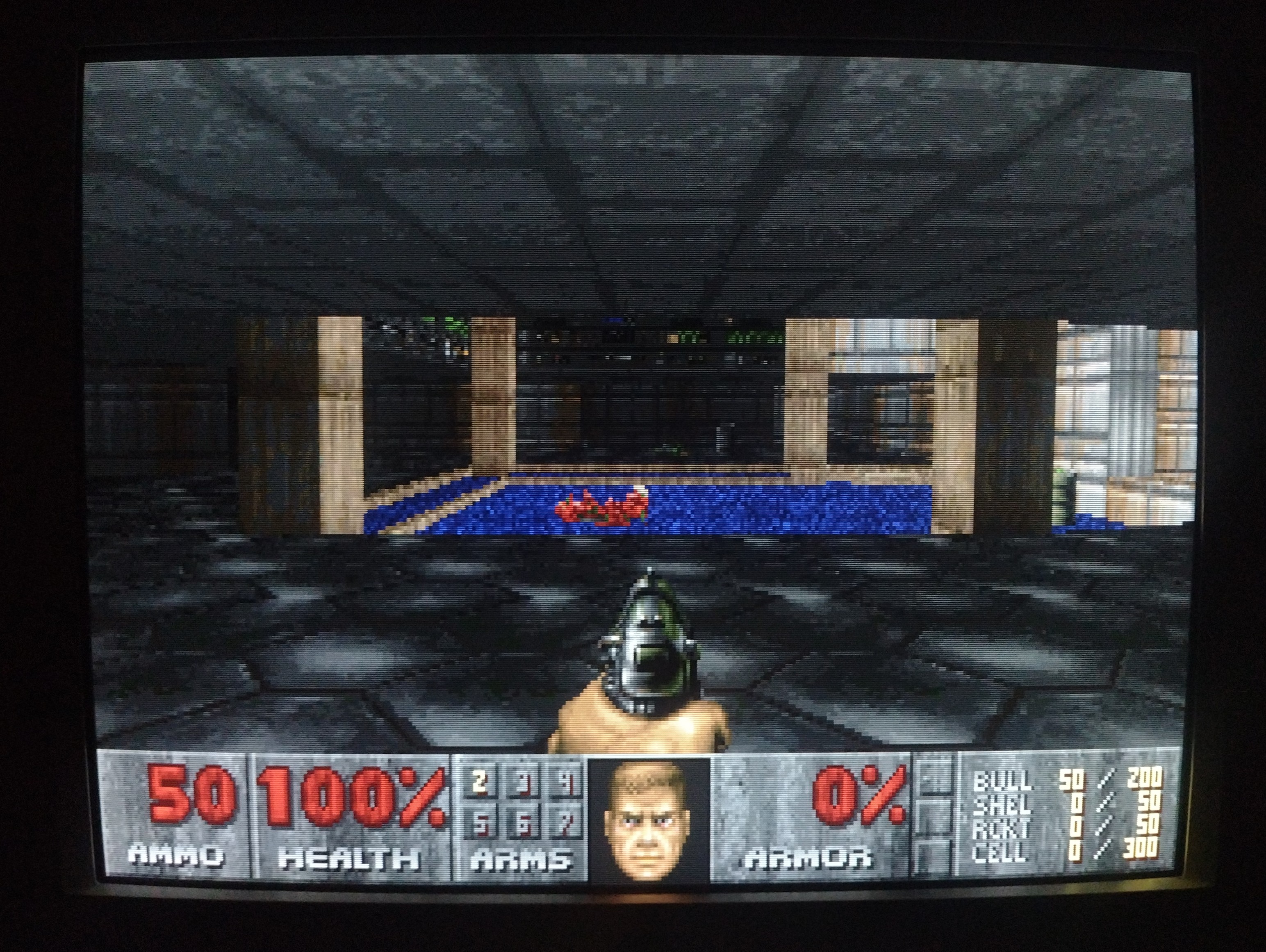

Gallery
| Specifications | |
|---|---|
| Manufacturer: | Hitachi |
| Manufacturer: | Hitachi |
| Model: | CM751U |
| Series: | SuperScan |
| Size: | 18" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal: | 31KHz, 93.75 kHz |
| Vertical: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

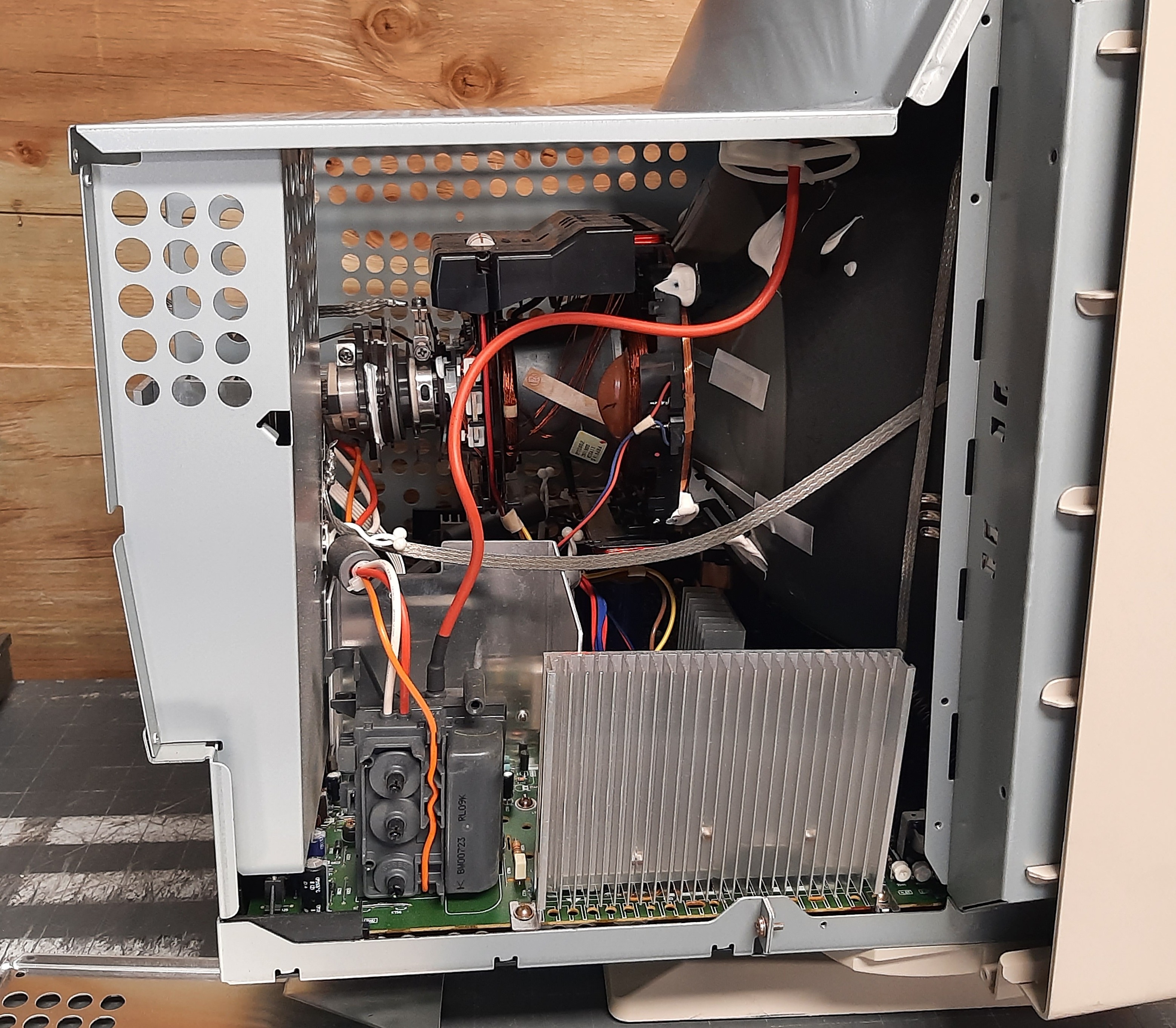

| Flyback: | HFL1327YD, BW00721, BW00722, BW00723 |
| Tube: | Hitachi , M46LLQ683X |
| Deflection: | 90 deg. |
| Mask: | Shadow |
| Pitch: | .26 mm |
| Tint: | Dark |
| Yoke: | BY00862 |
| Yoke_h_inductance: | 0.9956 mH |
| Yoke_v_inductance: | 4.983 mH |
| Yoke_h_resistance: | 0.5 ohms |
| Yoke_v_resistance: | 7.8 ohms |
| Speakers: | None |

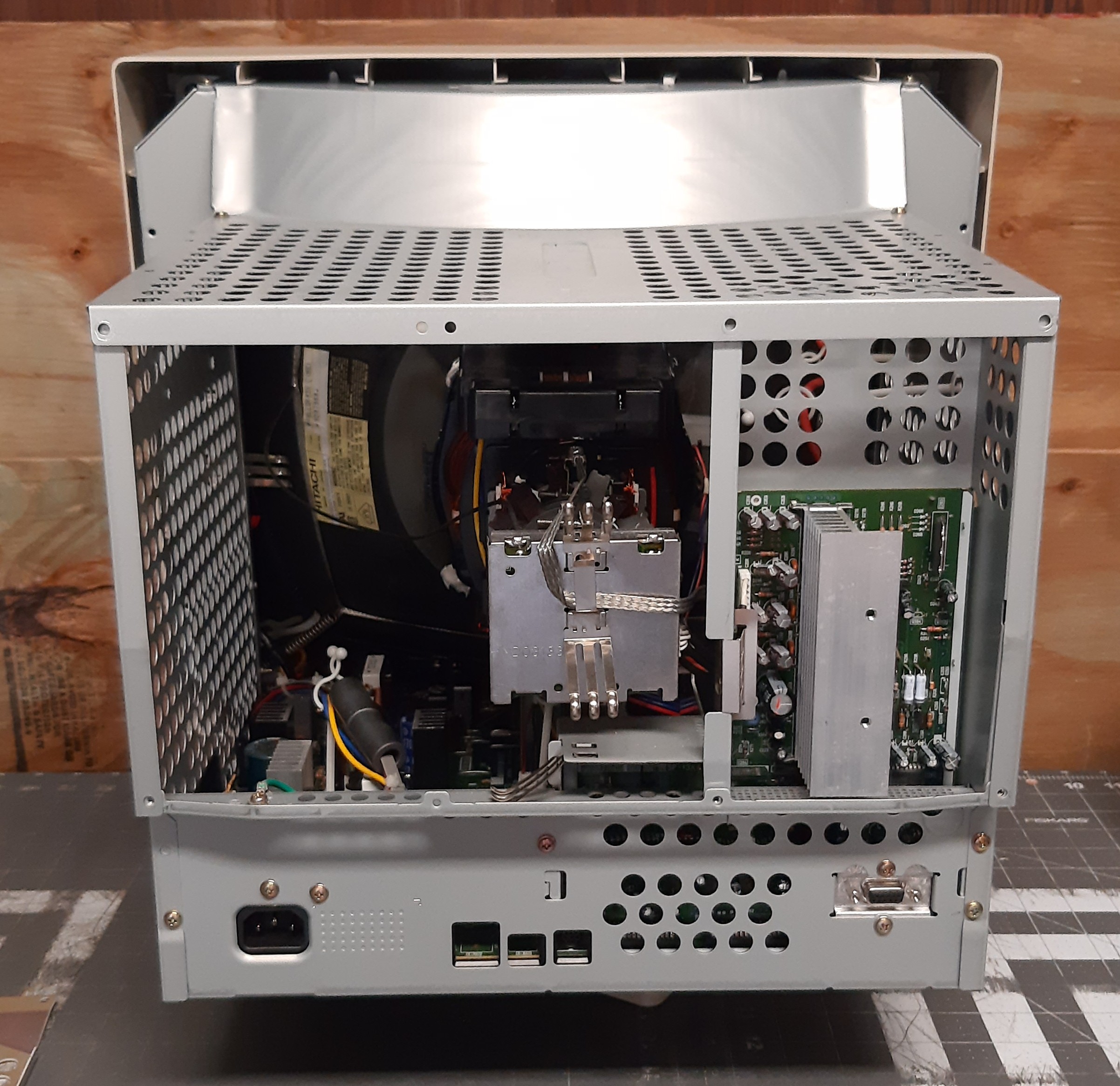

| Chassis: | C98 |
| Weight: | 53 lbs (24 kg) |
| Application: | Computer Monitor |
| Launched: | 1997 |
| Country: | Japan |
| Degaussing: | Automatic on Power-on, Manual |
